High Precision CNC V Sheet Metal Grooving Machine Hydraulic V Groover Machine 1532

Brand Name : JM

Model Number : GSFM

Certification : ISO9001,CE

Place of Origin : Wuxi,China

MOQ : 1 set

Price : Negotiate

Payment Terms : T/T

Supply Ability : 30 sets per mouth

Delivery Time : 10-30days

Packaging Details : Waterproof packaging

Colour : Blue and white; Customizable

Cooling action : Air cooling; Customizable water cooling

Input voltage : 380V; Customizable

Machinable length : 3200mm;Customizable

Machinable width : 1500mm;Customizable

Cutterbar Properties : Alloy blades or white steel blades

Contact Now

High Precision CNC V Cutting Machine for Stainless Steel Decoration with Hydraulic Drive, Model 1532

Bending effect display

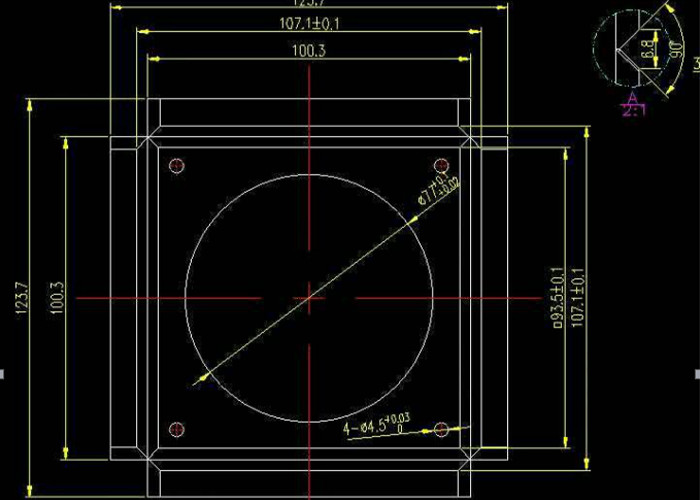

Based on the input data, the system can display the bending effect diagram in real time to avoid the loss of raw material caused by input errors and input omissions.

GSFM horizontal high-speed grooving v machine is a professional v grooving equipment, which is applicable to all metal plates, such as stainless steel plates, copper plates, aluminum plates, galvanized plates and so on. The v grooving is an auxiliary process of sheet bending forming. At the bending line where the sheet needs to be bent and formed, special cutters are used to cut V-shaped grooves, so that the material is easy to be bent and formed, and the R outside the bending angle can be minimized, and then bent and formed with a bending machine or manually, The processing is completed by this method and meets the product appearance requirements. The depth, width and angle of the V-shaped groove can be ensured by the feed rate and the shape of the cutting tools during machining.

The materials to be processed by GSFM v grooving machine are fixed by hydraulic clamping system, and flexible clamping and unloading devices are used: high-precision guidance system, position measurement system and hydraulic balancing function, to meet the needs of processing board surface free of trauma as far as possible. The hydraulic pressure is adjustable and reliable. The hydraulic system is equipped with an accumulator for compensation. The motor works in a clearance manner to save energy and control oil temperature.
No. Name Parameter Unit
1 Max. Width of metal sheet 1500 mm
2 Max. Length of metal sheet 3200 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of X axis 120 m/min
8 Max.distance of Y axis 1250 mm
9 Resolution in Y axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.0 kW
U 3.0
Y1,Y2,Z axis 1.0
14 Overall dimension Length 5100 mm
Width 2350
Height 1550
